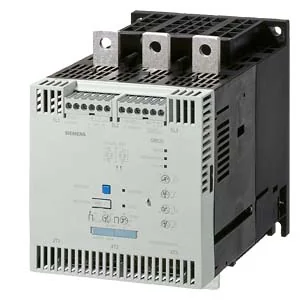

Arrancador Suave Sirius S12 432 A, 175 HP/220 V, 350 HP/440 V, 200-480 V, Ac/Dc 110-230 V 3RW4076-6BB44 - Siemens

Características del producto

product designation

Soft starter

● integrated bypass contact system

Yes

● thyristors

Yes

● intrinsic device protection

Yes

● motor overload protection

Yes

● evaluation of thermistor motor protection

No

● external reset

Yes

● adjustable current limitation

Yes

● inside-delta circuit

No

product component motor brake output

No

insulation voltage rated value

600 V

degree of pollution

3, acc. to IEC 60947-4-2

reference code according to EN 61346-2

Q

reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750

G

● at 40 °C rated value

432 A

● at 50 °C rated value

385 A

● at 60 °C rated value

335 A

— at standard circuit at 40 °C rated value

132 kW

yielded mechanical performance [hp] for 3-phase AC motor at 200/208 V at standard circuit at 50 °C rated value

125 hp

operating frequency rated value

50 ... 60 Hz

relative negative tolerance of the operating frequency

-10 %

relative positive tolerance of the operating frequency

10 %

operating voltage at standard circuit rated value

200 ... 460 V

relative negative tolerance of the operating voltage at standard circuit

-15 %

relative positive tolerance of the operating voltage at standard circuit

10 %

minimum load [%]

20 %

adjustable motor current for motor overload protection minimum rated value

207 A

continuous operating current [% of Ie] at 40 °C

115 %

power loss [W] at operational current at 40 °C during operation typical

165 W

type of voltage of the control supply voltage

AC

control supply voltage frequency 1 rated value

50 Hz

control supply voltage frequency 2 rated value

60 Hz

relative negative tolerance of the control supply voltage frequency

-10 %

relative positive tolerance of the control supply voltage frequency

10 %

● at 50 Hz rated value

230 V

● at 60 Hz rated value

230 V

relative negative tolerance of the control supply voltage at AC at 50 Hz

-15 %

relative positive tolerance of the control supply voltage at AC at 50 Hz

10 %

relative negative tolerance of the control supply voltage at AC at 60 Hz

-15 %

relative positive tolerance of the control supply voltage at AC at 60 Hz

10 %

display version for fault signal

red

size of engine control device

S12

width

160 mm

height

230 mm

depth

278 mm

fastening method

screw fixing

mounting position

With additional fan: With vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back Without additional fan: With vertical mounting surface +/-10° rotatable, with vertical mounting surface +/- 10° t

● upwards

100 mm

● at the side

5 mm

● downwards

75 mm

wire length maximum

300 m

number of poles for main current circuit

3

● for main current circuit

busbar connection

● for auxiliary and control circuit

screw-type terminals

number of NC contacts for auxiliary contacts

0

number of NO contacts for auxiliary contacts

2

number of CO contacts for auxiliary contacts

1

● finely stranded with core end processing

70 ... 240 mm²

● finely stranded without core end processing

70 ... 240 mm²

● stranded

95 ... 300 mm²
