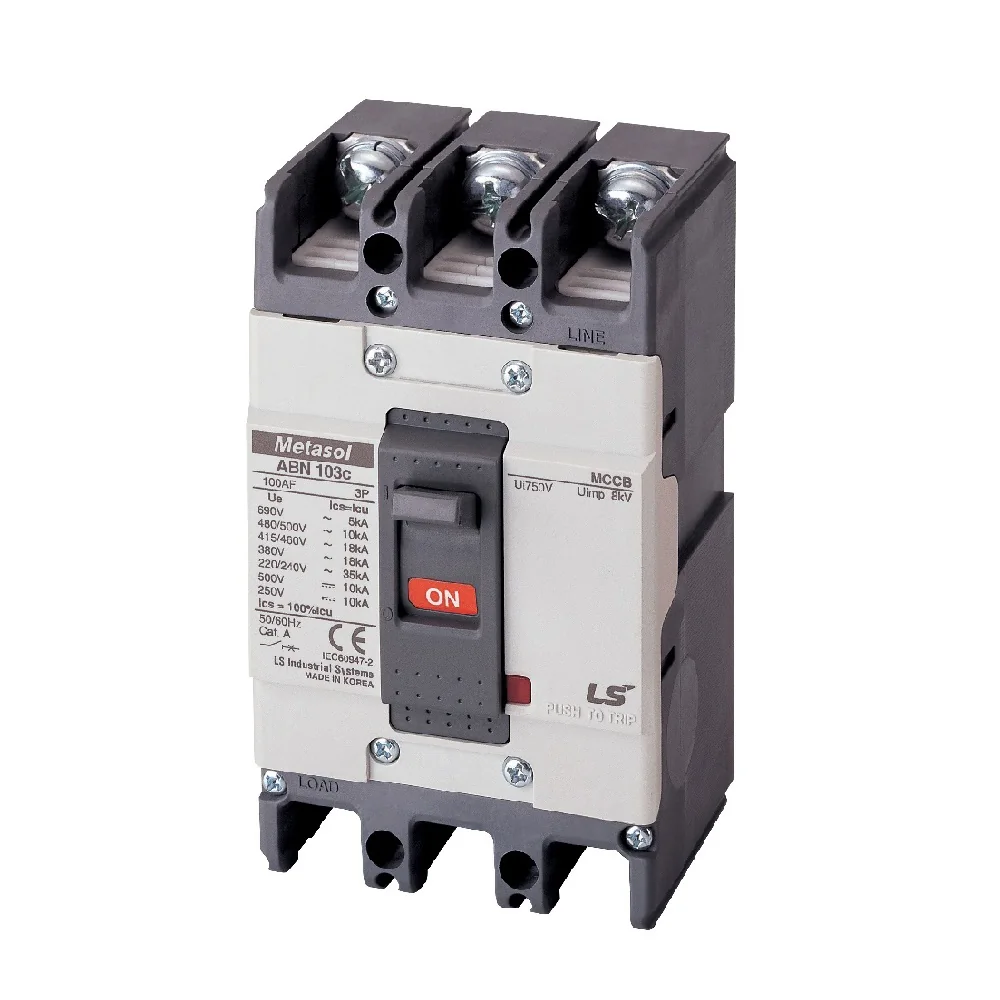

Interruptor Termomagnetico Fijo ABN103C 3P 50A, 35KA/240V Ftu // 4002340 Marca: LS
SKU 4002340 · Unidad base: unit
ABN103c 50A EXP Características técnicas: Product code: 0131008100; Product type: Metasol Molded Case Circuit Breaker; Trip Unit: FTU(Fixed-thermal, Fixed-magnetic); [In] rated current: 50 A at 40 ℃; Poles description: 3P; Protected poles description: 3T; Neutral position: -; Network type: AC (50/60 Hz), DC; Upside connection: Front (screw); Downside connection: Front (screw); [Ue] rated operational voltage (AC 50/60 Hz): 690 V AC; [Ue] rated operational voltage (DC): 500 V DC; [Uimp] rated impulse withstand voltage: 8 kV; [Ui] rated insulation voltage: 1000 V; Mechanical durability: 25000 cycles; Electrical durability (AC): 10000 cycles; Electrical durability (DC): -; Utilisation category: Category A.
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Product code
- 0131008100
- Product type
- Metasol Molded Case Circuit Breaker
- Trip Unit
- FTU(Fixed-thermal, Fixed-magnetic)
- [In] rated current
- 50 A at 40 ℃
- Poles description
- 3P
- Protected poles description
- 3T
- Neutral position
- -
- Network type
- AC (50/60 Hz), DC
- Upside connection
- Front (screw)
- Downside connection
- Front (screw)
- [Ue] rated operational voltage (AC 50/60 Hz)
- 690 V AC
- [Ue] rated operational voltage (DC)
- 500 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ui] rated insulation voltage
- 1000 V
- Mechanical durability
- 25000 cycles
- Electrical durability (AC)
- 10000 cycles
- Electrical durability (DC)
- -
- Utilisation category
- Category A
- Suitability for isolation
- Yes
- Reference standard
- IEC 60947-2
- [Icu] rated Ultimate short-circuit breaking capacity
- -
- [Ics] rated service breaking capacity
- -
- [Icm] rated short-circuit marking capacity
- -
- [Icw] rated short-time withstand current
- -
- Trip unit characteristics
- -
- [Ir] Long-time pick-up adjustment range
- -
- [Iu] Long-time pick-up adjustment range
- -
- [tr] Long-time delay adjustment range
- -
- [Isd] Short-time pick-up adjustment range
- -
- [tsd] Short-time delay adjustment range
- -
- [Ii] Instantaneous pick-up adjustment range
- 12 x In, tolerance ±20%
- [Ig] Ground-fault protection pick-up adjustment range
- -
- [tg] Ground-fault protection time delay adjustment range
- -
- Earth leakage pick-up adjustment range
- -
- Earth leakage alam time delay adjustment range
- -
- Earth leakage trip time delay adjustment range
- -
- [Ip] Pre-trip alarm pick-up adjustment range
- -
- [tp] Pre-trip alarm time delay adjustment range
- -
- Alarm LED
- -
- Pollution degree
- 3, IEC 60664-1
- Degree of protection
- IP20, IEC 60529
- Ambient air temperature for operation
- -20…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Mounting mode
- Fixed
- Mounting support
- Backplate
- Approvals<sup>1)</sup> (General)
- IC (Korea)
- Approvals (Marine)
- KR (Korea)
- Product
- 0.7 kg
- Packing
- 20 pcs.
- Overall dimensions
- Metasol MCCB_Catalog_EN-2.png
