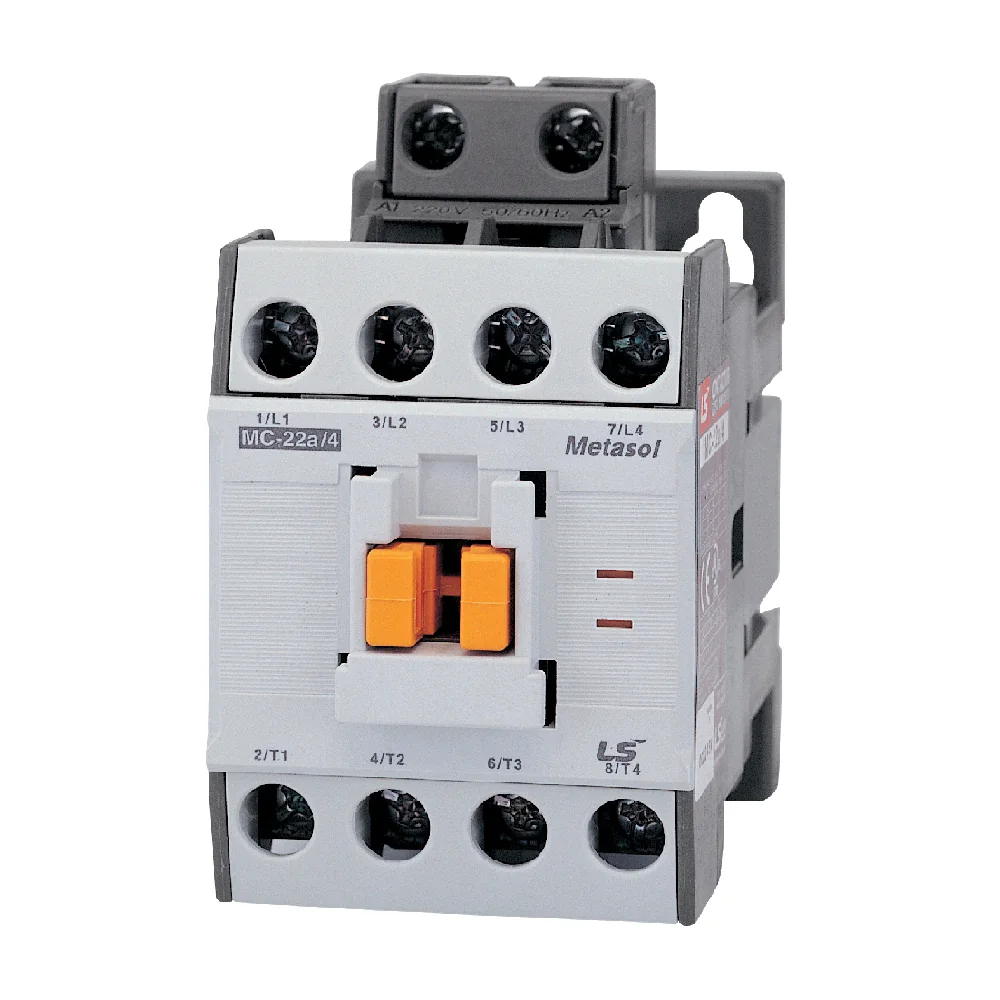

Contactor MC- 22A 1NA 1NC /AC3 220VAC LS 50/60HZ // 4002353 Marca: LS

Características del producto

Product code

1347011100

Product type

Metasol Contactor

Main contact

4NO

Auxiliary contact

-

Control voltage

AC200V 50Hz

Type of terminal

Screw

Local/Export

Export

Standards

IEC 60947-4-1, IEC 60947-5-1, UL508

Certificates

-

Number of poles

4P

Rated operational voltage [Ue]

690V

Rated insulation voltage [Ui]

690V

Rated withstand voltage [Uimp]

6kV

Rated frequency [Hz]

50Hz

Maximum operating rate in operating cycles per hour(AC3)

50Hz

Mechanical durability (mil. operations)

50Hz

Electrical durability (mil. operations)

50Hz

Rated operational current (AC-1)

50Hz

Power (AC-1)

44kW at 690V

Current (AC-1)

40A at 690V

Motor power (AC-3)

-

Motor power (AC-4)

-

Rated operational current (AC-3)

-

Rated operational current (AC-4)

-

Rated operational current (DC-3,5)

-

Rated operational current (DC-1)

-

Type 2 Coordination

-

Motor power (UL/CSA)

15hp at 550~600V for 3 phase motors

NEMA size

-

Rated Short-time withstand current

-

Conductor size (AWG)

12~8

Conductor size (mm2)

2.5~10

The max. number of conductor

2.5~10

Conductor type

Solid, Stranded

Conductor charateristic

65/75? Cu-wire only

Main terminal size

M4

Crimp terminal (mm)

M4

Torque (lb-in)

M4

Torque (Nm)

M4

Torque (kgf.cm)

M4

Degree of protection

IP20

Ambient air temperature

-5? ~ +55? at operation (AC type)

Operating altitude

3000m(8900ft)

Shock resistance (1/2 sin wave=11ms)

10G at closed

Vibration resistance (Conforming to IEC68-2-6) (5~300Hz)

4G at closed

Flame resistance

960? at conforming to IEC695-2-1

REACH

Yes

RoHS

Yes

WEEE

Yes

Weight

0.4kg

Size width

47.2mm / 1.86inch

Size height

80mm / 3.15inch

Size depth

86.8mm / 3.42inch

Drawings

MC-22a 4 AC_ .png

Control voltage limit [Uc]

85~110%

Consumption at 20℃

9VA at holding

Heat dissipation

2.3W at holding

Operating time

4~19ms at opening

Applicable Accessories

Metasol MS_71.png
