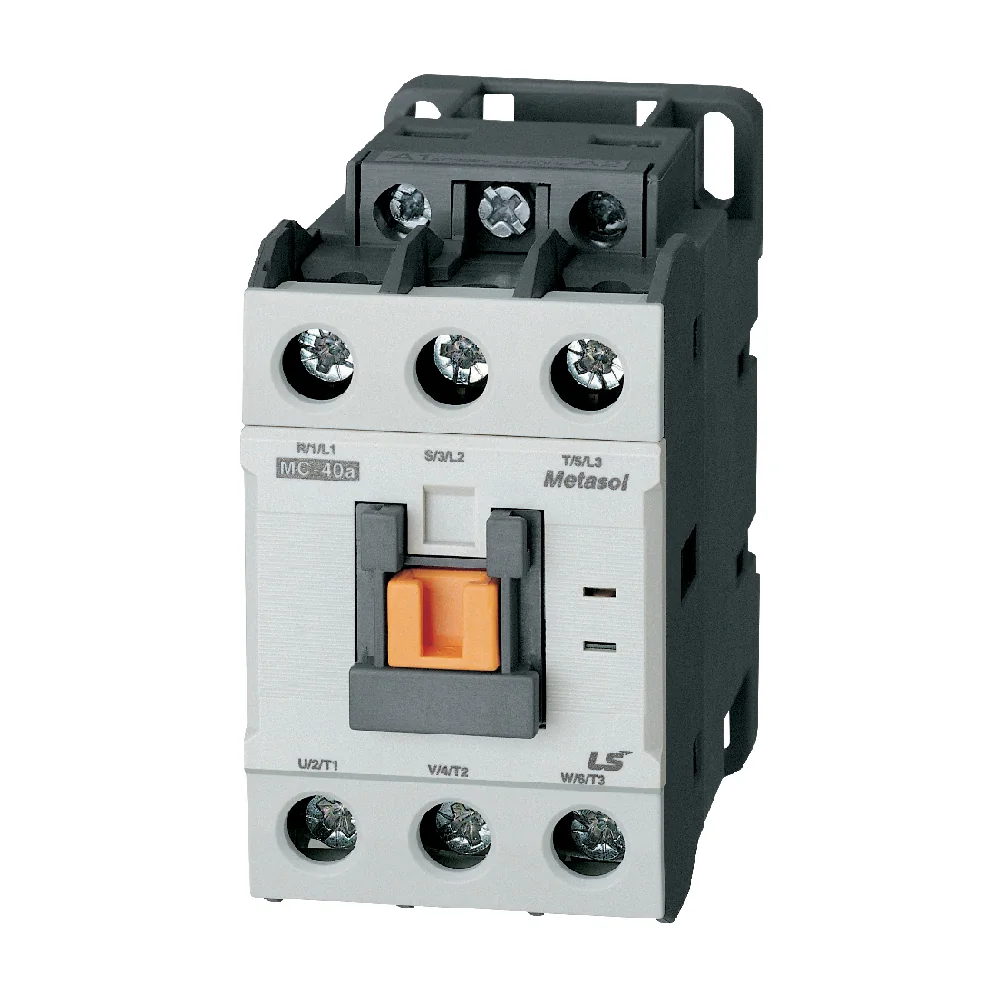

Contactor MC- 32A 2NA 2NC /AC3 220VAC LS 50/60HZ // 4002354 Marca: LS
SKU 4002354 · Unidad base: unit
MC-32a AC200V 50Hz 220V 60Hz SCREW 1a1b (Metasol) EXP (MC32A-30-11-LM7-S-E) Características técnicas: Product code: 1336011100; Product type: Metasol Contactor; Main contact: 3NO; Auxiliary contact: 1NO 1NC; Control voltage: AC200V 50Hz / 220V 60Hz; Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Number of poles: 3P; Rated operational voltage [Ue]: 1000V; Rated insulation voltage [Ui]: 1000V; Rated withstand voltage [Uimp]: 8kV; Rated frequency [Hz]: 60Hz; Maximum operating rate in operating cycles per hour(AC3): 60Hz; Mechanical durability (mil. operations): 60Hz; Electrical durability (mil. operations): 60Hz; Rated operational current (AC-1): 55A.
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Product code
- 1336011100
- Product type
- Metasol Contactor
- Main contact
- 3NO
- Auxiliary contact
- 1NO 1NC
- Control voltage
- AC200V 50Hz / 220V 60Hz
- Type of terminal
- Screw
- Local/Export
- Export
- Standards
- IEC 60947-4-1, IEC 60947-5-1, UL508
- Certificates
- KR, LR, BV, DNV, ABS, NK, RINA
- Number of poles
- 3P
- Rated operational voltage [Ue]
- 1000V
- Rated insulation voltage [Ui]
- 1000V
- Rated withstand voltage [Uimp]
- 8kV
- Rated frequency [Hz]
- 60Hz
- Maximum operating rate in operating cycles per hour(AC3)
- 60Hz
- Mechanical durability (mil. operations)
- 60Hz
- Electrical durability (mil. operations)
- 60Hz
- Rated operational current (AC-1)
- 55A
- Power (AC-1)
- -
- Current (AC-1)
- -
- Motor power (AC-3)
- 22kW at 1000V
- Motor power (AC-4)
- 7.5kW at 380/440V
- Rated operational current (AC-3)
- 17A at 690V
- Rated operational current (AC-4)
- 17A at 380/440V
- Rated operational current (DC-3,5)
- -
- Rated operational current (DC-1)
- -
- Type 2 Coordination
- See the Type 2 Coordination Table in the catalog
- Motor power (UL/CSA)
- 25hp at 550~600V for 3 phase motors
- NEMA size
- 1P
- Rated Short-time withstand current
- 50A at =15min
- Conductor size (AWG)
- 8~6
- Conductor size (mm2)
- 10~16
- The max. number of conductor
- 10~16
- Conductor type
- Solid, Stranded
- Conductor charateristic
- 65/75? Cu-wire only
- Main terminal size
- M5
- Crimp terminal (mm)
- M5
- Torque (lb-in)
- M5
- Torque (Nm)
- M5
- Torque (kgf.cm)
- M5
- Degree of protection
- IP20
- Ambient air temperature
- -5? ~ +55? at operation (AC type)
- Operating altitude
- 3000m(8900ft)
- Shock resistance (1/2 sin wave=11ms)
- 10G at closed
- Vibration resistance (Conforming to IEC68-2-6) (5~300Hz)
- 4G at closed
- Flame resistance
- 960? at conforming to IEC695-2-1
- REACH
- Yes
- RoHS
- Yes
- WEEE
- Yes
- Weight
- 0.5kg
- Size width
- 57mm / 2.24inch
- Size height
- 83mm / 3.27inch
- Size depth
- 90mm / 3.54inch
- Drawings
- MC-32a~40a AC.png
- Control voltage limit [Uc]
- 85~110%
- Consumption at 20℃
- 9VA at holding
- Heat dissipation
- 2.7W at holding
- Operating time
- 4~19ms at opening
- Applicable Accessories
- Metasol MS_35.png
