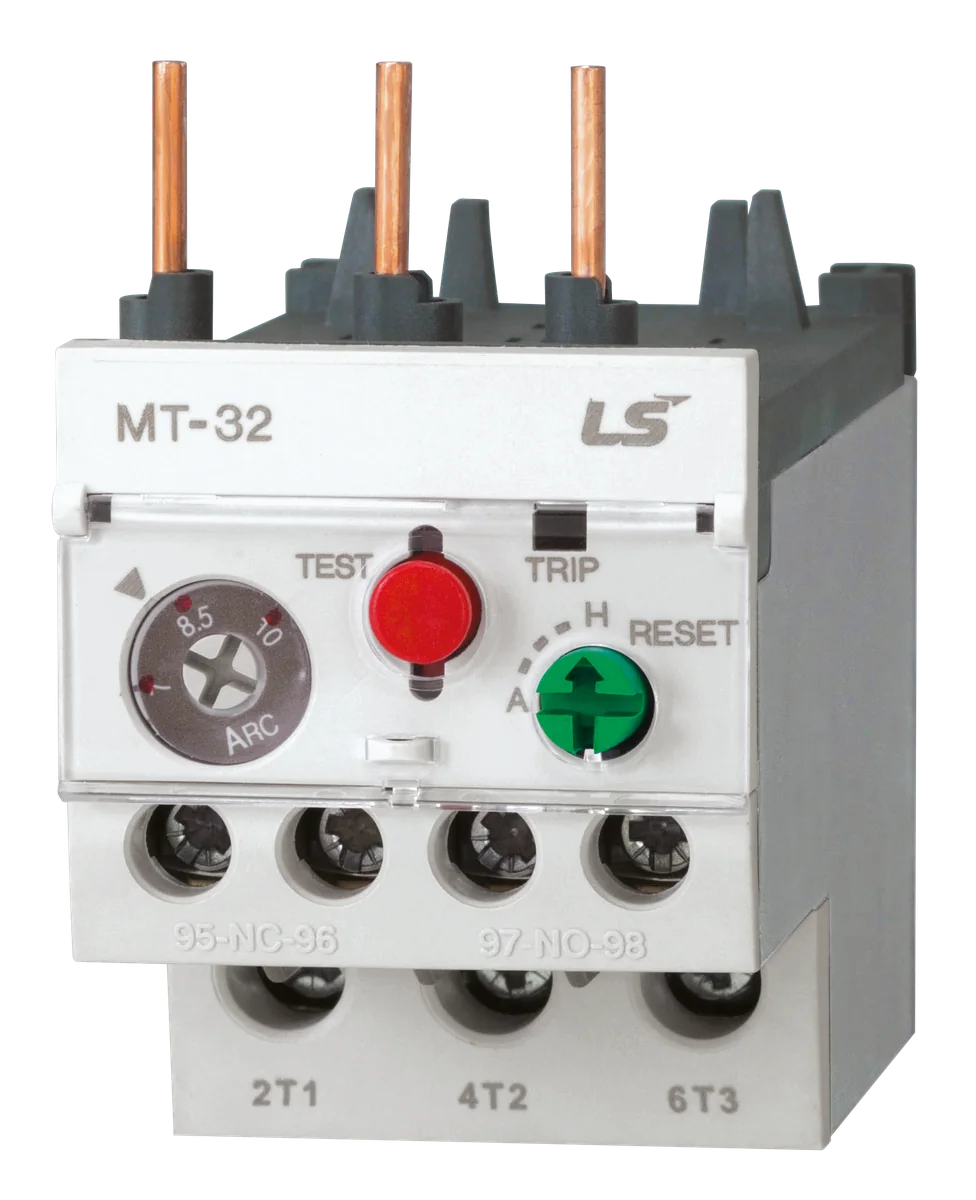

Rele Térmico MT Reg. 12.0-18.0A // 4004897 Marca: LS
SKU 4004897 · Unidad base: unit
MT-32 15A 2H SCREW EXP (MT32-2H-15-S-E) Características técnicas: Product code: 1296001400; Product type: Metasol Thermal Overload Relay; Heater type: 2H (Non differential 2-heater, Trip class 10A); Current range: 15(12~18A); Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Poles description: 3P; Trip class: 10A; Rated operational voltage [Ue]: 690V; Rated insulation voltage [Ui]: 690V; Rated withstand voltage [Uimp]: 6kV; Rated frequency [Hz]: 50/60Hz; Temperature compensation (℃): -5℃ ~ 40℃; Functions: Manual/Automatic Reset; Type 2 Coordination with MCCB & TOR (440V): See the Type 2 table; Conductor size (AWG): 18.
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Product code
- 1296001400
- Product type
- Metasol Thermal Overload Relay
- Heater type
- 2H (Non differential 2-heater, Trip class 10A)
- Current range
- 15(12~18A)
- Type of terminal
- Screw
- Local/Export
- Export
- Standards
- IEC 60947-4-1, IEC 60947-5-1, UL508
- Certificates
- KR, LR, BV, DNV, ABS, NK, RINA
- Poles description
- 3P
- Trip class
- 10A
- Rated operational voltage [Ue]
- 690V
- Rated insulation voltage [Ui]
- 690V
- Rated withstand voltage [Uimp]
- 6kV
- Rated frequency [Hz]
- 50/60Hz
- Temperature compensation (℃)
- -5℃ ~ 40℃
- Functions
- Manual/Automatic Reset
- Type 2 Coordination with MCCB & TOR (440V)
- See the Type 2 table
- Conductor size (AWG)
- 18
- Conductor size (mm2)
- 1
- Conductor charateristic
- 65/75℃ Cu-wire only
- Main terminal size
- M4
- Torque (lb-in)
- 20
- Torque (Nm)
- 2.26
- Torque (kgf.cm)
- 22.9
- Degree of protection
- IP20
- Ambient air temperature
- -25℃ ~ +60℃ at operation
- Mounting position
- Vertical plane
- Shock resistance (1/2 sin wave=11ms)
- 15gn - 11ms
- Vibration resistance (Conforming to IEC68-2-6) (5~300Hz)
- 6G
- REACH
- Yes
- RoHS
- Yes
- WEEE
- Yes
- Weight (kg)
- 0.17
- Size width
- 45mm / 1.85inch
- Size height
- 75mm / 3.09inch
- Size depth
- 90mm / 3.7inch
- Drawings
- MT-32.png
- Composition
- 1NO+1NC
- Rated thermal current
- 5A
- Rated operation current
- 0.1A at 240V (DC13 duty)
- Characteristic Curve
- Class 10A, 40AF.png
