Soporte De Riel P/Relé Térmico MT95. Lug LS

SKU 4004999 · Unidad base: unit

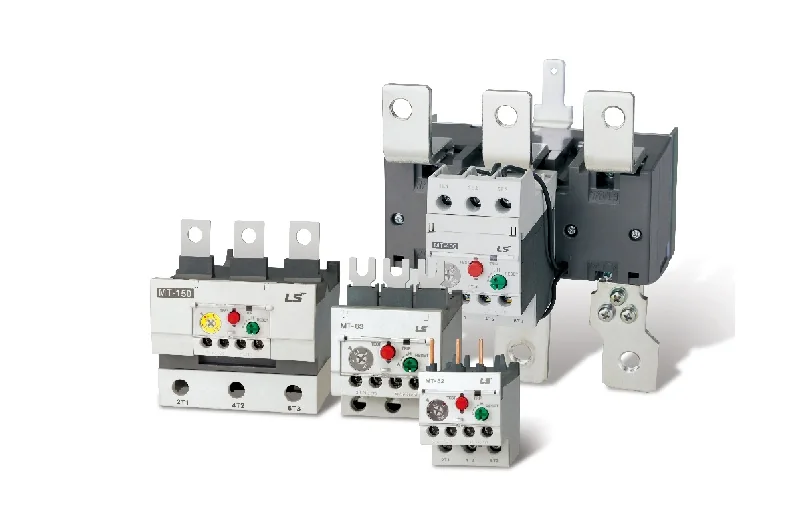

MT-95 8.5A 2H SCREW EXP (MT95-2H-8.5-S-E) Características técnicas: Product code: 1312000100; Product type: Metasol Thermal Overload Relay; Heater type: 2H (Non differential 2-heater, Trip class 10A); Current range: 8.5(7~10A); Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Poles description: 3P; Trip class: 10A; Rated operational voltage [Ue]: 690V; Rated insulation voltage [Ui]: 690V; Rated withstand voltage [Uimp]: 6kV; Rated frequency [Hz]: 50/60Hz; Temperature compensation (℃): -5℃ ~ 40℃; Functions: Manual/Automatic Reset; Type 2 Coordination with MCCB & TOR (440V): See the Type 2 table; Conductor size (AWG): 18.

La solicitud no reserva mercadería ni confirma un pedido.
