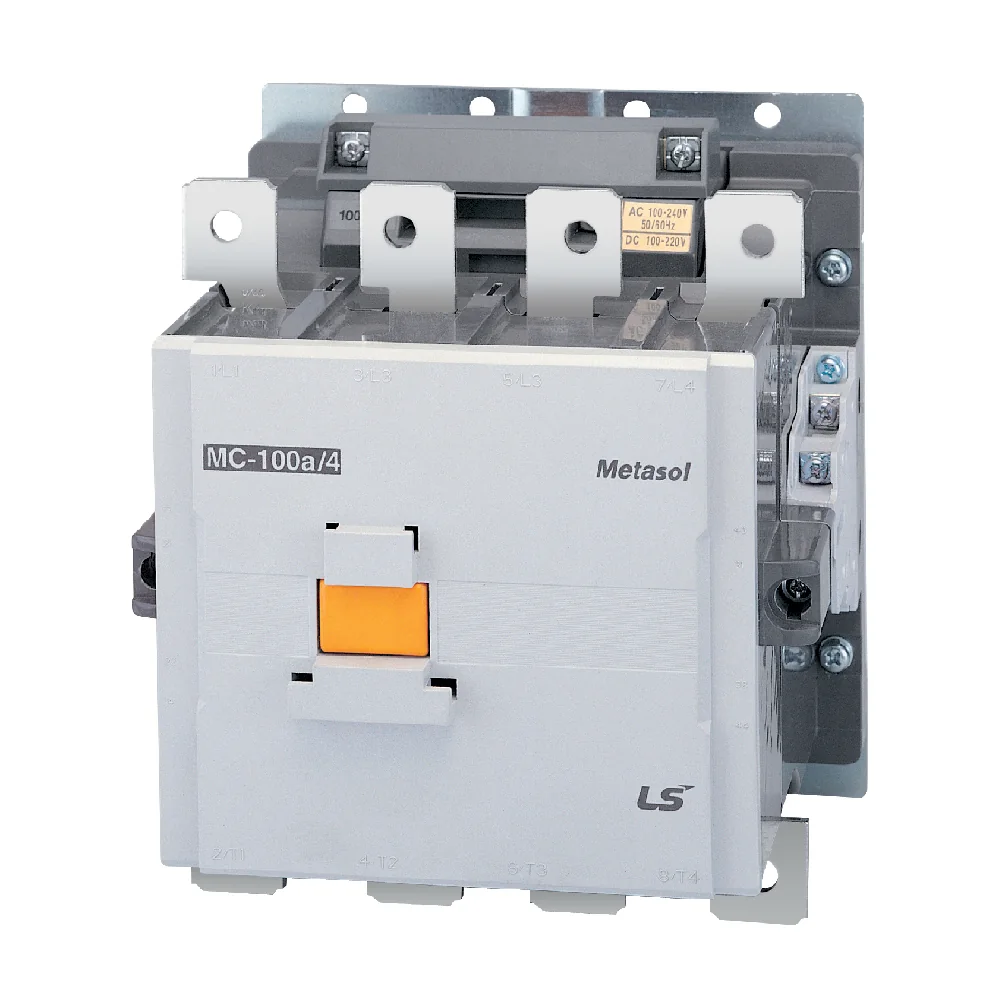

Contactor MC- 100A /AC3 220VAC LS 50/60HZ // 4005587 Marca: LS

Características del producto

Product code

1342019200

Product type

Metasol Contactor

Main contact

4NO

Auxiliary contact

2NO 2NC

Control voltage

AC100-240V 50/60Hz, DC100-220V

Type of terminal

Screw

Local/Export

Export

Standards

IEC 60947-4-1, IEC 60947-5-1, UL508

Certificates

-

Number of poles

4P

Rated operational voltage [Ue]

690V

Rated insulation voltage [Ui]

1000V

Rated withstand voltage [Uimp]

8kV

Rated frequency [Hz]

50/60Hz

Maximum operating rate in operating cycles per hour(AC3)

1200

Mechanical durability (mil. operations)

5

Electrical durability (mil. operations)

0.8

Rated operational current (AC-1)

0.8

Power (AC-1)

165kW at 690V

Current (AC-1)

200A at 690V

Motor power (AC-3)

-

Motor power (AC-4)

-

Rated operational current (AC-3)

-

Rated operational current (AC-4)

-

Rated operational current (DC-3,5)

-

Rated operational current (DC-1)

-

Type 2 Coordination

-

Motor power (UL/CSA)

60hp at 550~600V for 3 phase motors

NEMA size

-

Rated Short-time withstand current

-

Conductor size (AWG)

6~00

Conductor size (mm2)

16~70

The max. number of conductor

16~70

Conductor type

Solid, Stranded

Conductor charateristic

65/75? Cu-wire only

Main terminal size

M8

Crimp terminal (mm)

M8

Torque (lb-in)

M8

Torque (Nm)

M8

Torque (kgf.cm)

M8

Degree of protection

IP00

Ambient air temperature

-5? ~ +55? at operation (AC type)

Operating altitude

3000m(8900ft)

Shock resistance (1/2 sin wave=11ms)

10G at closed

Vibration resistance (Conforming to IEC68-2-6) (5~300Hz)

4G at closed

Flame resistance

960? at conforming to IEC695-2-1

REACH

Yes

RoHS

Yes

WEEE

Yes

Weight

5.6kg

Size width

175mm / 6.89inch

Size height

203mm / 7.99inch

Size depth

185.2mm / 7.29inch

Drawings

MC-100a 4_.png

Control voltage limit [Uc]

85~110%

Consumption at 20℃

11.6VA at holding

Heat dissipation

4.7W at holding

Operating time

70ms at opening

Applicable Accessories

Metasol MS_75.png
