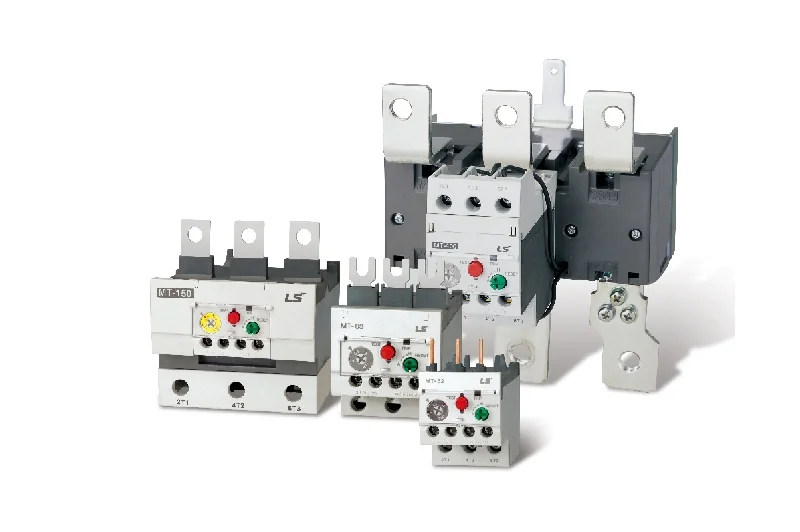

Relé Térmico MT Reg. 80-100A // 4005593 Marca: LS

SKU 4005593 · Unidad base: unit

MT-95 90A 2H SCREW EXP (MT95-2H-90-S-E) Características técnicas: Product code: 1312001300; Product type: Metasol Thermal Overload Relay; Heater type: 2H (Non differential 2-heater, Trip class 10A); Current range: 90(80~100A); Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Poles description: 3P; Trip class: 10A; Rated operational voltage [Ue]: 690V; Rated insulation voltage [Ui]: 690V; Rated withstand voltage [Uimp]: 6kV; Rated frequency [Hz]: 50/60Hz; Temperature compensation (℃): -5℃ ~ 40℃; Functions: Manual/Automatic Reset; Type 2 Coordination with MCCB & TOR (440V): See the Type 2 table; Conductor size (AWG): 18.
