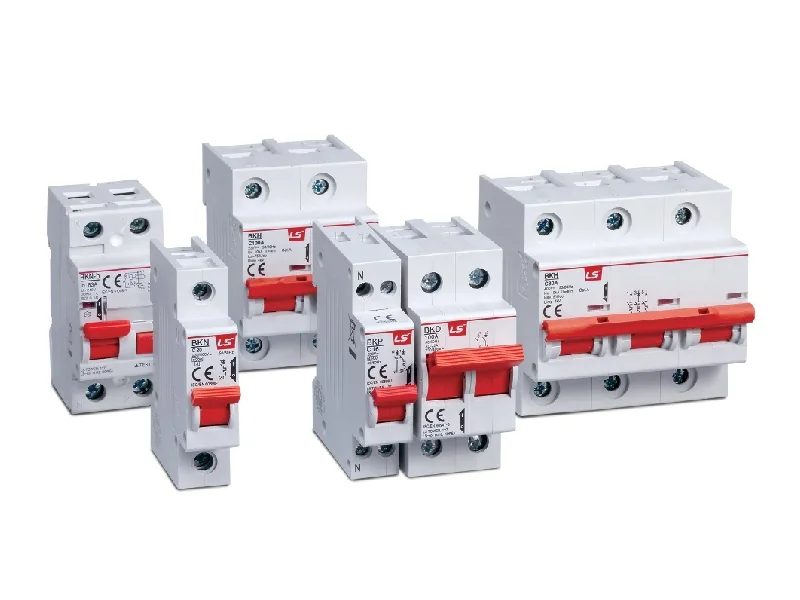

Interruptor Termomagnetico Riel BKJ 3X32A, 6KA/415V;10KA/220V/ // 4021998 Marca: LS
SKU 4021998 · Unidad base: unit
BKJ63N 3P B32 NEW ROGY Características técnicas: Product code: 06131181R0; Product type: Miniature Circuit Breaker; Rated current [In]: 32A; Rated voltage [Ue]: 415VAC 50/60Hz (2P/3P); Breaking capacity: 6kA; Characteristic: B curve; Number of poles: 3P; Type of trip: Thermal-magnetic release; Standard: IEC 60898-1, IEC 60947-2; Rated insulation voltage [Ui]: 500V; Rated impulse withstand voltage [Uimp]: 4kV; Type of terminal: Lug type; Terminal capacity: cables up to 25mm²; Installation: 35mm DIN rail; Width: 17.8mm per pole; Electrical endurance: 10,000 operations.
Consulta existencias con tu cuenta.
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Product code
- 06131181R0
- Product type
- Miniature Circuit Breaker
- Rated current
- 32A
- Rated voltage
- 415VAC 50/60Hz
- Breaking capacity
- 6kA
- Characteristic
- B curve
- Number of poles
- 3P
- Type of trip
- Thermal-magnetic release
- Standard
- IEC 60898-1, IEC 60947-2
- Rated insulation voltage
- 500V
- Rated impulse withstand voltage
- 4kV
- Type of terminal
- Lug type
- Installation
- 35mm DIN rail
