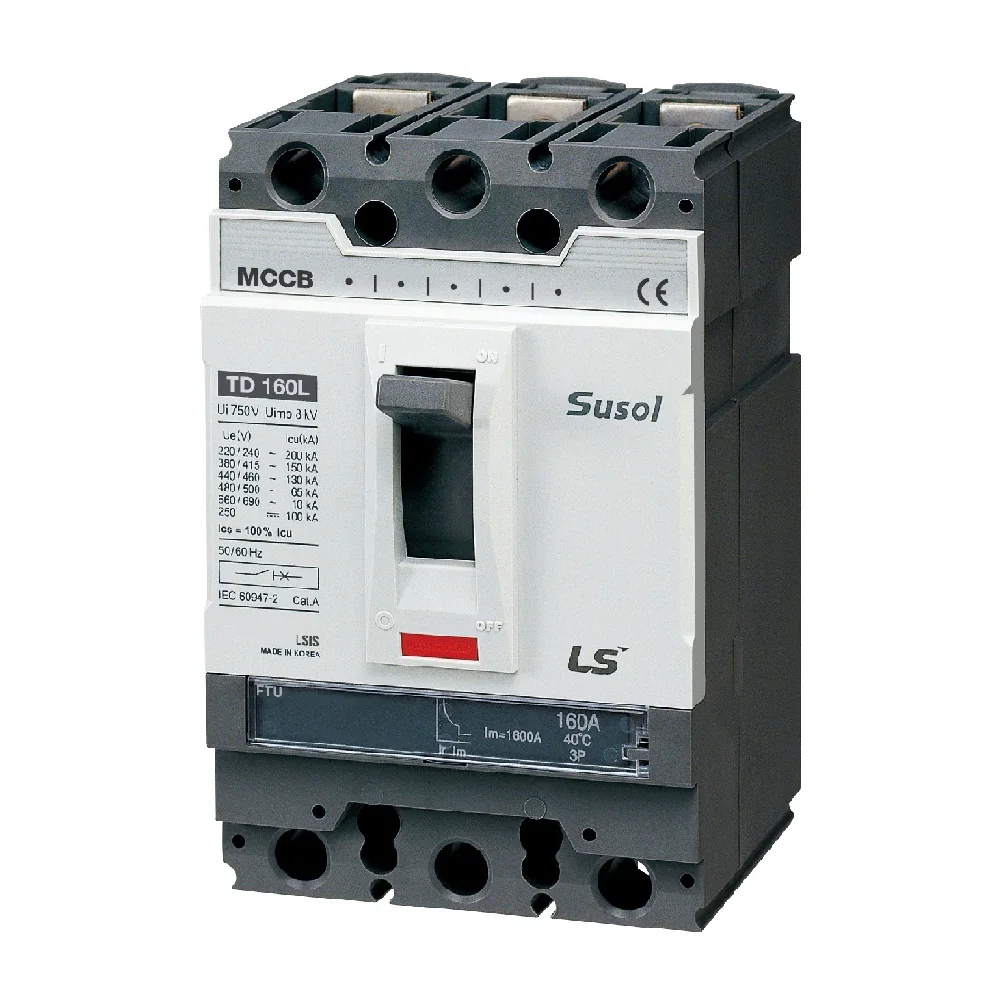

Interruptor Termomagnetico Reg TD160N Fmu 3P 125A 50KA/400V // 4101289 Marca: LS

SKU 4101289 · Unidad base: unit

TD160N FTU160 125A 3P EXP Características técnicas: Product code: 0102006400; Product type: Susol Molded Case Circuit Breaker; Trip Unit: FTU(Fixed-thermal, Fixed-magnetic); [In] rated current: 125 A at 40 ℃; Poles description: 3P; Protected poles description: 3T; Neutral position: -; Network type: AC (50/60 Hz), DC; Upside connection: Front (screw); Downside connection: Front (screw); [Ue] rated operational voltage (AC 50/60 Hz): 690 V AC; [Ue] rated operational voltage (DC): 500 V DC; [Uimp] rated impulse withstand voltage: 8 kV; [Ui] rated insulation voltage: 1000 V; Mechanical durability: 25000 cycles; Electrical durability (AC): 10000 cycles 415 V In; Electrical durability (DC): -; Utilisation category: Category A.

La solicitud no reserva mercadería ni confirma un pedido.
