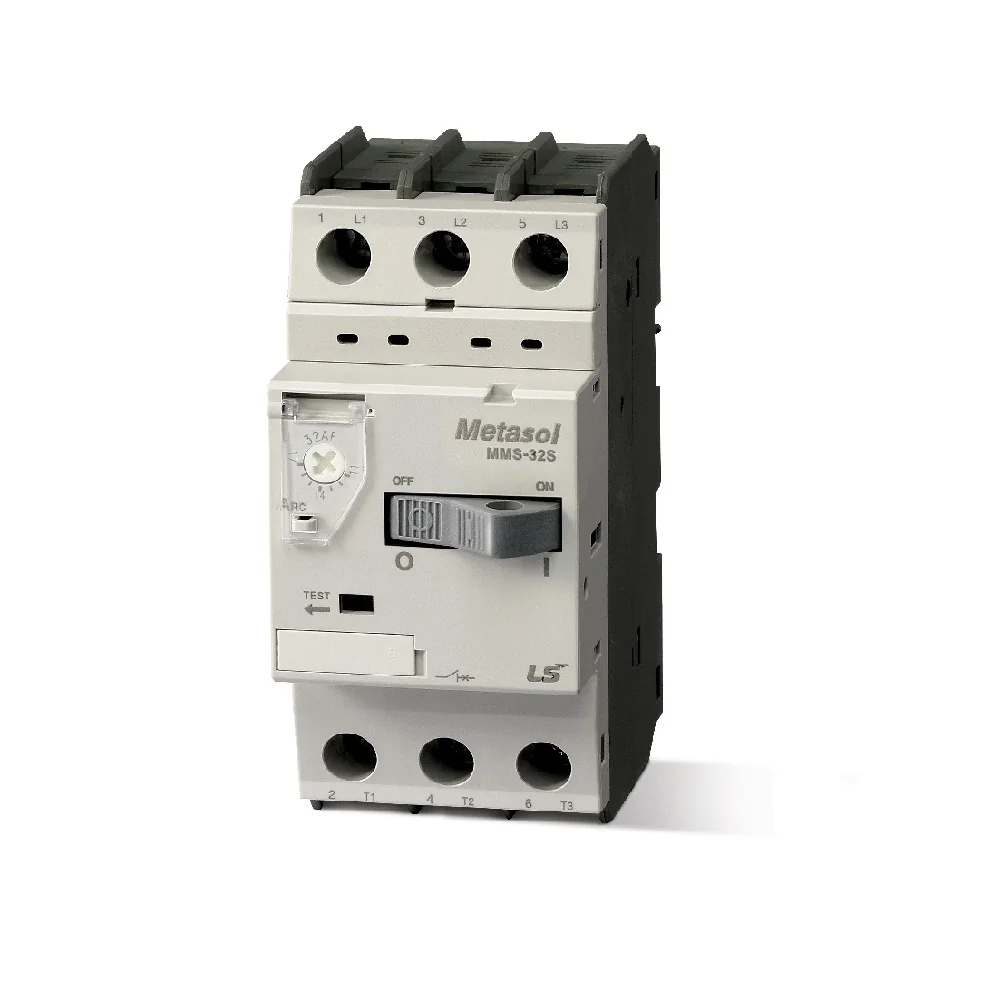

Guardamotor Magnetotérmico De 18 A 26 A MMS // 4101329 Marca: LS
SKU 4101333 · Unidad base: unit
MMS-32S 22A METASOL DIAL COVER EXP Características técnicas: Product code: 0705101441; Product type: Metasol Manual Motor Starter; Type: Current adjustable type; Breaking capacity: Standard; Rated operational current (Ie): 22A; Thermal release Adjustment range (A): 14~22; Type of terminal: Screw; Handle type: Rocker; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-2, UL508; Certificates: KR, LR, BV, DNV GL, ABS, RINA; Poles description: 3P; Trip class: 10; Rated operational voltage [Ue]: Up to 690V; Rated insulation voltage [Ui]: 690V; Rated withstand voltage [Uimp]: 6kV; Rated frequency [Hz]: 50/60Hz; Instantaneous short circuit release: 13 x Ie max..
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Product code
- 0705101441
- Product type
- Metasol Manual Motor Starter
- Type
- Current adjustable type
- Breaking capacity
- Standard
- Rated operational current (Ie)
- 22A
- Thermal release Adjustment range (A)
- 14~22
- Type of terminal
- Screw
- Handle type
- Rocker
- Local/Export
- Export
- Standards
- IEC 60947-4-1, IEC 60947-2, UL508
- Certificates
- KR, LR, BV, DNV GL, ABS, RINA
- Poles description
- 3P
- Trip class
- 10
- Rated operational voltage [Ue]
- Up to 690V
- Rated insulation voltage [Ui]
- 690V
- Rated withstand voltage [Uimp]
- 6kV
- Rated frequency [Hz]
- 50/60Hz
- Instantaneous short circuit release
- 13 x Ie max.
- Max operating frequency per hour (Ope./h)
- 25
- Mechanical endurance (Operating)
- 100000
- Electrical endurance (Cycles)
- 100000
- Utilization category (IEC60947-2 Breaker)
- Cat.A
- Utilization category (IEC60947-4 Motor starter)
- AC-3
- Function
- Short circuit protection
- Ultimate short-circuit breaking capacity (Icu)
- 3kA at 690V/600V
- Rated service short-circuit breaking capacity (Ics)
- 3kA at 690V/600V
- Switching of standard three-phase motors (AC-2, AC-3)
- 15kW at 690V
- Back-up fuses (gG, gL, only if Icc>Icu)
- 63kA at 690V
- Wire Single-core [㎟]/[AWG]
- 1~6 / 18~10 at 2 conductors
- Wire Stranded [㎟]/[AWG]
- 1~6 / 18~10 at 2 conductors
- Wire Flexible [㎟]/[AWG]
- 0.75~4 / 18~10 at 2 conductors
- Tightening torque [Nm]/[lb-in]
- 0.8~2.5 / 7~22
- Degree of Protection
- IP20
- Ambient air temperature
- -20℃ ~ +60℃ at operation
- Ambient temperature compensation
- -5℃ ~ +40℃
- Maximum operating altitude
- 2,000m
- Shock resistance
- 25g
- Vibration resistance
- 5~15Hz
- REACH
- Yes
- RoHS
- Yes
- WEEE
- Yes
- Weight (kg)
- 0.32
- Size width
- 45mm / 1.77inch
- Size height
- 75mm / 2.95inch
- Size depth
- 94mm / 3.7inch
- Drawing
- MMS 32S-01.jpg
- Tripping curve
- MMS-32AF-horz.png
