Mini Contactor Gmr 10A 2NA + 2NC GMR-4M-2NO2NC // 4105432 Marca: LS

SKU 4105432 · Unidad base: unit

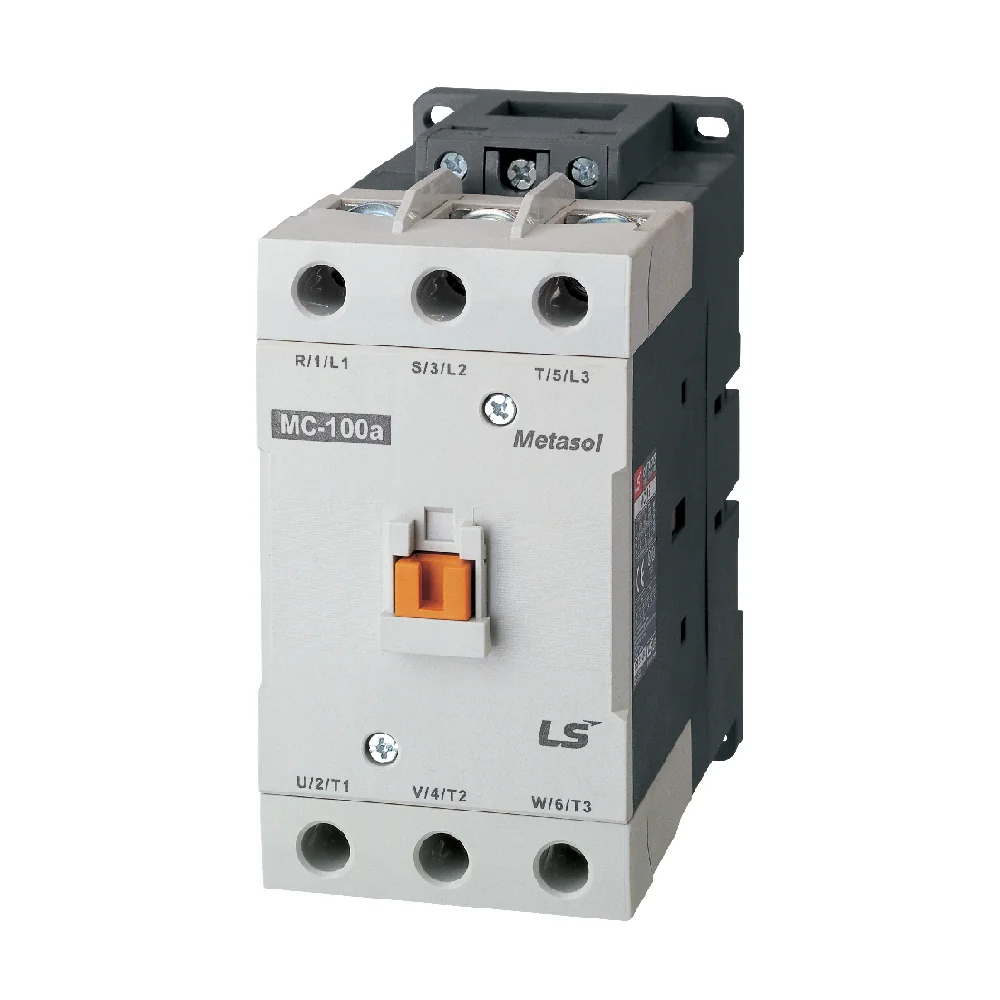

MC-100a AC110V 50/60Hz SCREW 1a1b (Metasol) EXP (MC100A-30-11-F7-S-E) Características técnicas: Product code: 1342006600; Product type: Metasol Contactor; Main contact: 3NO; Auxiliary contact: 1NO 1NC; Control voltage: AC110V 50/60Hz; Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Number of poles: 3P; Rated operational voltage [Ue]: 1000V; Rated insulation voltage [Ui]: 1000V; Rated withstand voltage [Uimp]: 8kV; Rated frequency [Hz]: 50/60Hz; Maximum operating rate in operating cycles per hour(AC3): 1200; Mechanical durability (mil. operations): 12; Electrical durability (mil. operations): 1; Rated operational current (AC-1): 160A.

La solicitud no reserva mercadería ni confirma un pedido.
