SCHNEIDER

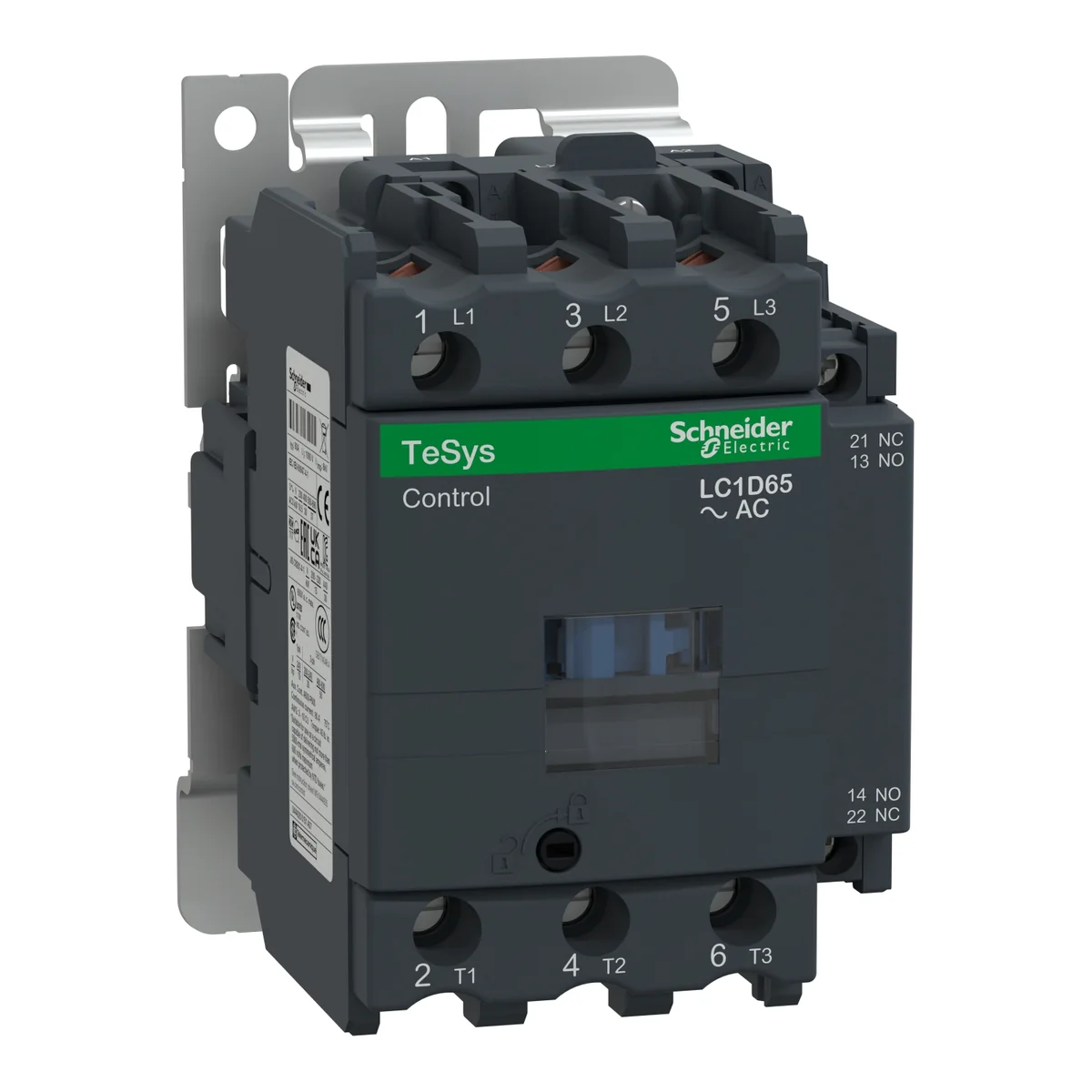

Contactor Everlink 65A 1NA+1NC 25/50HP 220/440V BOB-24V 50/60HZ - LC1D65B7
SKU LC1D65B7 · Unidad base: unit
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Consulta existencias con tu cuenta.
Ingresa o regístrate para consultar el stock registrado.
Ingresar ↗La solicitud no reserva mercadería ni confirma un pedido.
Consultar ficha técnica ↗Características del producto
- Range
- TeSys
- Range of Product
- TeSys Deca
- Product or Component Type
- Contactor
- Device short name
- LC1D
- Contactor application
- Resistive load Motor control
- Utilisation category
- AC-4 AC-1 AC-2 AC-3e AC-1
- Poles description
- 3P
- [Ue] rated operational voltage
- Power circuit <= 690 V AC 25...400 Hz
- [Ie] rated operational current
- 65 A (at 65 A (at 65 A (at 80 A (at <140 °F (60 °C)) at 24 V AC AC-1 for power circuit
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- Motor power kW
- 11 kW at 400 V AC 50 Hz (AC-4) 30 kW at 380...400 V AC 50 Hz (AC-3) 37 kW at 660...690 V AC 50 Hz (AC-3) 18.5 kW at 220...230 V AC 50 Hz (AC-3) 37 kW at 1000 V AC 50 Hz (AC-3) 30 kW at 440 V AC 50 Hz (AC-3e) 30 kW at 380...400 V AC 50 Hz (AC-3e) 37 kW at 500 V AC 50 Hz (AC-3e) 37 kW at 660...690 V AC 50 Hz (AC-3e) 18.5 kW at 220...230 V AC 50 Hz (AC-3e) 30 kW at 415 V AC 50 Hz (AC-3e) 37 kW at 1000 V AC 50 Hz (AC-3e) 37 kW at 500 V AC 50 Hz 30 kW at 380...400 V AC 50 Hz
- Maximum Horse Power Rating
- 10 hp at 230/240 V AC 60 Hz for 1 phase motors 20 hp at 200/208 V AC 60 Hz for 3 phase motors 20 hp at 230/240 V AC 60 Hz for 3 phase motors 40 hp at 460/480 V AC 60 Hz for 3 phase motors 50 hp at 575/600 V AC 60 Hz for 3 phase motors 5 hp at 115 V AC 60 Hz for 1 phase motors
- Compatibility code
- LC1D
- Pole contact composition
- 3 NO
- Protective cover
- With
- [Ith] conventional free air thermal current
- 80 A (at 140 °F (60 °C)) for power circuit 10 A (at 140 °F (60 °C)) for control circuit
- Irms rated making capacity
- 140 A at 440 V AC for control circuit conforming to IEC 60947-5-1 140 A AC for control circuit conforming to IEC 60947-5-1 1000 A at 440 V for power circuit conforming to IEC 60947
- Rated breaking capacity
- 1000 kA at 440 V for power circuit conforming to IEC 60947
- [Icw] rated short-time withstand current
- 520 A 104 °F (40 °C) - 10 s for power circuit 900 A 104 °F (40 °C) - 1 s for power circuit
- Associated fuse rating
- 125 A gG at 160 A gG at 125 A gG at 10 A gG for control circuit conforming to IEC 60947-5-1
- Average impedance
- 1.5 Ohm - Ith 80 A 50 Hz for power circuit
- Power dissipation per pole
- 6.4 W AC-1 4.2 W AC-3e 6.3 W AC-3 9.6 W AC-1
- [Ui] rated insulation voltage
- Control circuit 600 V UL Power circuit 600 V CSA Power circuit 600 V UL IEC 60947-1 Control circuit 690 V IEC 60947-1 Power circuit 690 V CSA IEC 60947-1 Control circuit 600 V CSA
- Overvoltage category
- III
- [Uimp] rated impulse withstand voltage
- 6 kV IEC 60947
- Safety reliability level
- B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Mechanical durability
- 6 Mcycles
- Control circuit type
- AC 50/60 Hz
- Coil technology
- Without built-in
- Control circuit voltage limits
- 0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz 1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz 0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz
- Inrush power in VA
- 160 VA cos phi 0.75 (at 68 °F (20 °C)) 140 VA cos phi 0.75 (at 68 °F (20 °C))
- Hold-in power consumption in VA
- 15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) 13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))
- Heat dissipation
- 4…5 W at 50/60 Hz for control circuit
- Operating time
- 12...26 ms closing 4...19 ms opening
- Maximum operating rate
- 3600 cyc/mn at 60 °C
- Connections - terminals
- Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid without cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: rigid Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: rigid without cable end Power circuit: screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…16 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.004…0.04 in² (2.5…25 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid
- Tightening torque
- Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal Philips No 2 Power circuit 44.3 lbf.in (5 N.m) screw terminal flat Ø 6 to Ø 8 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal pozidriv No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminal flat Ø 6 mm
- Auxiliary contact composition
- 1 NO + 1 NC
- Auxiliary contacts type
- Mirror contact 1 NC IEC 60947-4-1 Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Minimum switching voltage
- 17 V for control circuit
- Minimum switching current
- 5 mA for control circuit
- Insulation resistance
- > 10 MOhm for control circuit
- Non-overlap time
- 1.5 ms on energisation between NC and NO contacts 1.5 ms on de-energisation between NC and NO contacts
- Mounting Support
- Rail Rail
- Standards
- UL 60947-4-1 EN 60947-5-1 EN 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14
- Product Certifications
- UL CCC BV GL GOST RINA LROS (Lloyds register of shipping) DNV UKCA GL
- IP degree of protection
- IP2X VDE 0106 IP2X IEC 60529
- Protective treatment
- TH 3)IEC 60068-2-30
- Climatic withstand
- IACS E10 exposure to damp heat
- Operating altitude
- 0...9842.52 ft (0...3000 m)
- Fire resistance
- 1562 °F (850 °C) IEC 60695-2-1
- Flame retardance
- V1 conforming to UL 94
- Mechanical robustness
- Shocks contactor closed 15 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor opened 10 Gn for 11 ms)
- Height
- 4.8 in (122 mm)
- Width
- 2.8 in (70 mm)
- Depth
- 4.6 in (118 mm)
- Net Weight
- 4.817 lb(US) (2.185 kg)
- Quantity per Set
- Set of 10
- Category
- US1CTR121252
- Discount Schedule
- CTR1
- GTIN
- 3389110436211
- Returnability
- Yes
- Country of origin
- CZ
- Unit Type of Package 1
- PCE
- Nbr. of units in pkg.
- 1
- Package 1 Height
- 3.7 in (9.5 cm)
- Package 1 Width
- 5.2 in (13.2 cm)
- Package 1 Length
- 5.5 in (14.0 cm)
- Package weight(Lbs)
- 3.201 lb(US) (1.452 kg)
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 5
- Package 2 Height
- 5.9 in (15 cm)
- Package 2 Width
- 11.8 in (30 cm)
- Package 2 Length
- 15.7 in (40 cm)
- Package 2 Weight
- 16.724 lb(US) (7.586 kg)
- Warranty (in months)
- 18
