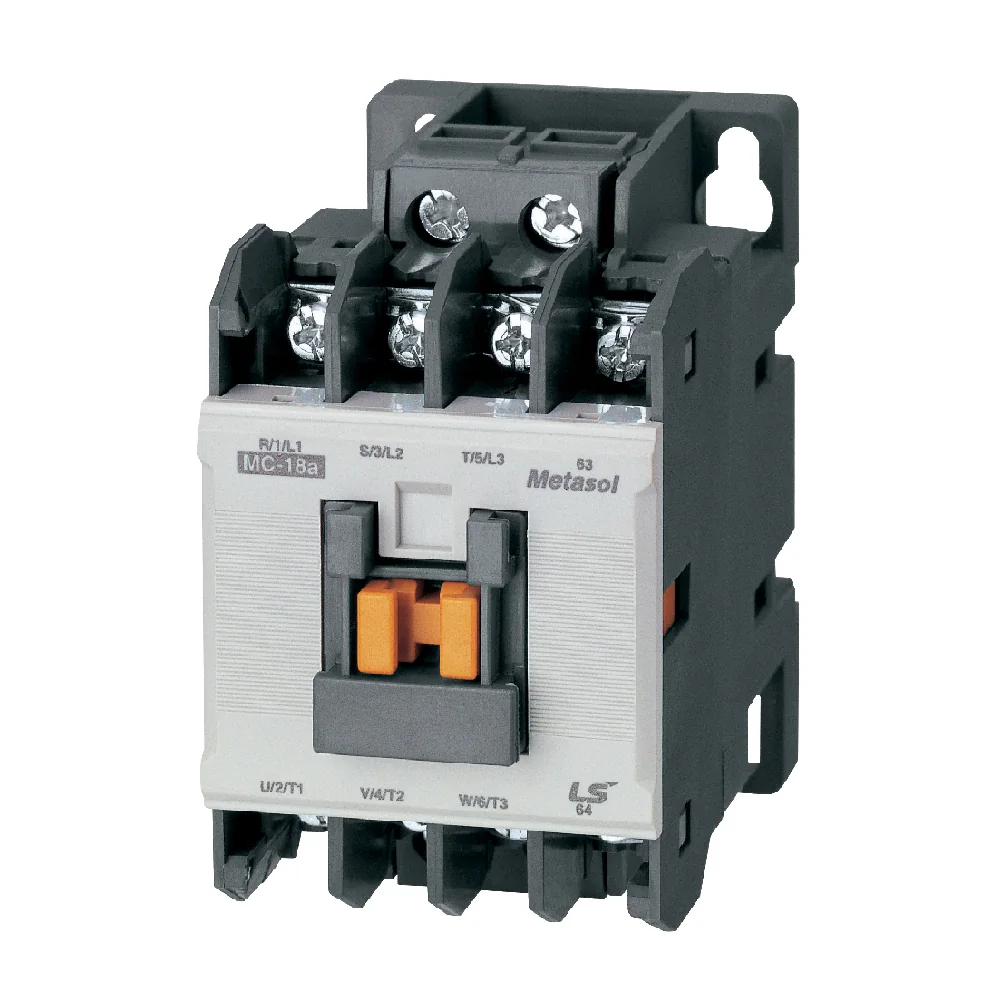

Contactor MC-18B-440V 18A /AC3 BOB.440V 4004883 LS 50/60HZ.

SKU MC-18B-440V · Unidad base: unit

MC-18a AC440V 50/60Hz SCREW 1a (Metasol) EXP (MC18A-30-10-R7-S-E) Características técnicas: Product code: 1328001300; Product type: Metasol Contactor; Main contact: 3NO; Auxiliary contact: 1NO; Control voltage: AC440V 50/60Hz; Type of terminal: Screw; Local/Export: Export; Standards: IEC 60947-4-1, IEC 60947-5-1, UL508; Certificates: KR, LR, BV, DNV, ABS, NK, RINA; Number of poles: 3P; Rated operational voltage [Ue]: 690V; Rated insulation voltage [Ui]: 690V; Rated withstand voltage [Uimp]: 6kV; Rated frequency [Hz]: 50/60Hz; Maximum operating rate in operating cycles per hour(AC3): 50/60Hz; Mechanical durability (mil. operations): 50/60Hz; Electrical durability (mil. operations): 50/60Hz; Rated operational current (AC-1): 32A.

La solicitud no reserva mercadería ni confirma un pedido.
